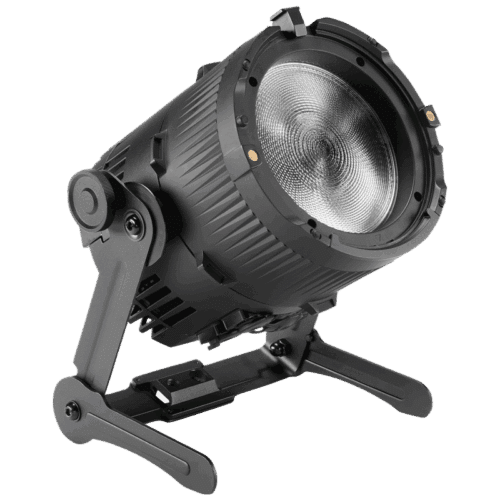

Astera QuikPunch – IP65 Battery Fresnel/Cob/Uplighter

Wireless RGBMA Fresnel spotlight with battery and CRMX control

NEW TO STOCK

The Astera QuikPunch is a powerful, battery-powered LED Fresnel designed for film, broadcast and event lighting applications. Combining Astera’s Titan LED engine with a compact Fresnel optic, the fixture delivers high-quality colour rendering, strong output and completely cable-free operation.

Featuring a 13°–60° manual zoom, the QuikPunch produces up to 8,000 lux at 3 m while consuming just 75 W of power, delivering output comparable to a 650 W tungsten Fresnel. It integrates seamlessly into the Astera ecosystem with CRMX wireless DMX, wired DMX and Astera App control, making it ideal for fast-paced productions where speed and flexibility are essential.

The fixture is fully IP65 rated, allowing reliable operation both indoors and outdoors, while the integrated battery system enables fully wireless setups with runtimes suitable for event and film production environments.

Accurate punch, fast operation. This wireless spotlight with Fresnel lens features a 13º–60º zoom, zero stray light, and delivers 8,000 lux at 3 meters—all with just 75W of power. (650 W equivalent.) It’s not only a future-proof investment, but also a fixture every event, film, or broadcast crew will want on set.

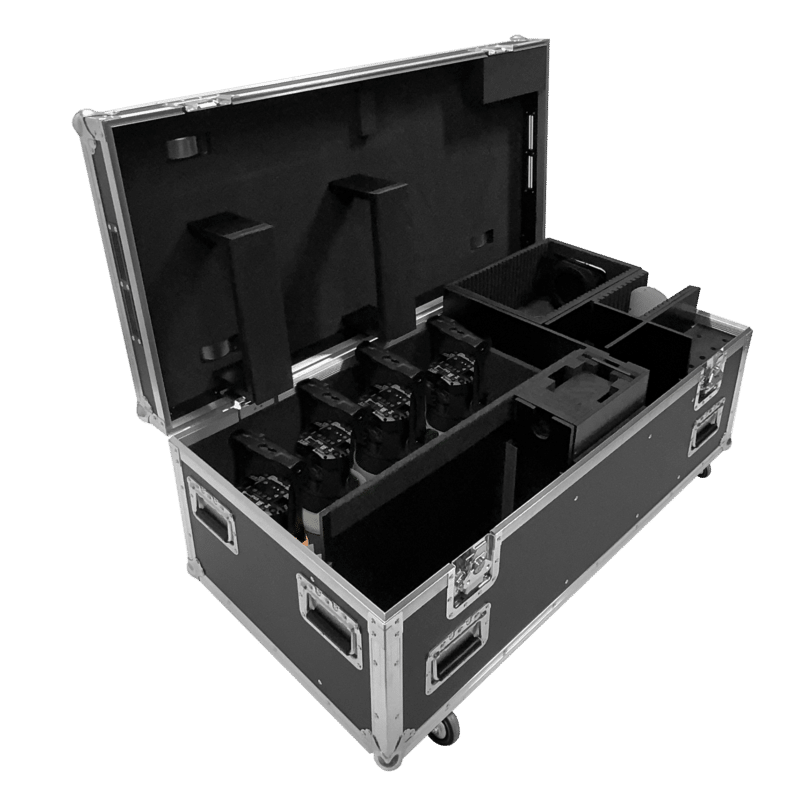

Supplied in cases of eight. Supplied with PrepBox. You may wish to add Astera ART7 to aid setup.

Key features

• Titan LED engine with RGBMA colour mixing
• 13°–60° zoomable Fresnel lens
• Up to 8,000 lux output at 3 m
• Equivalent output to ~650 W tungsten Fresnel
• Wireless CRMX DMX and wired DMX control
• Bluetooth control via Astera App
• Internal battery operation for cable-free setups
• IP65 rated for indoor and outdoor use

Technical specifications

Light engine

• LED type: RGBMA Titan LED engine
• LED power: 75 W
• Colour mixing: Red / Green / Blue / Mint / Amber
• CRI: ≥96
• TLCI: ≥96

Optics

• Lens: 5″ Fresnel
• Zoom range: 13° – 60°
• Output: up to 8,000 lux at 3 m

Control

• Wireless DMX (CRMX)
• Wired DMX512 (5-pin XLR)
• Bluetooth control via Astera App
• Infrared remote compatibility
• RDM support

Power

• Internal lithium battery
• Runtime:
  • ~4.5 hours at full output
  • up to ~20 hours depending on brightness
• Charging time: approx. 5 hours
• AC input: 100–240 V via TRUE1 power input

Physical

• IP rating: IP65
• Mounting: yoke with spigot / clamp mounting
• Includes barndoors
• Suitable for floor, stand or truss mounting
