More power. More control. Same familiar Titan workflow.

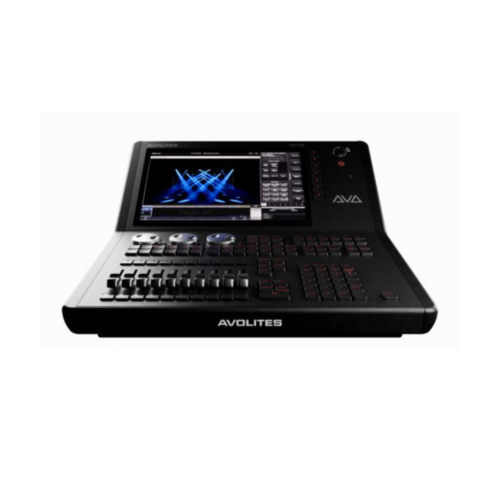

The Avolites D3-110 is a compact, professional lighting control console designed for live events, corporate productions, touring and installations. Running the latest Avolites Titan platform, it combines a familiar hands-on control surface with significantly increased processing capability, expanded connectivity and native support for larger lighting systems.
With 24 universes / 12,288 channels available directly from the console, the D3-110 provides considerably more capacity than the Quartz while retaining the compact footprint that makes it ideal for event production environments.
Looking for a larger desk? Check out the Avolites D7
Key Specifications
| Specification |
Avolites D3-110 |
| Control Platform |
Avolites Titan |
| DMX Universes |
24 native / 12,288 channels |
| Fixtures |
Unlimited |

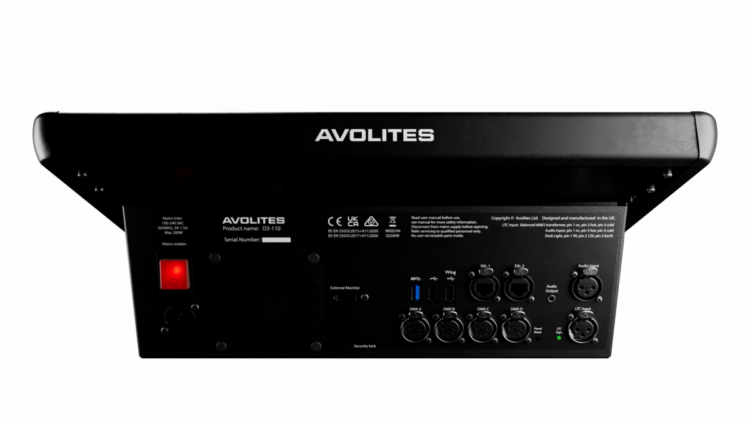

| Physical DMX |
4 × 5-pin XLR |
| Network Outputs |
Art-Net, Art-RDM, sACN |
| Network |
2 × Gigabit EtherCON |
| Playback Faders |
10 × 60mm |
| Attribute Encoders |
3 × high-resolution metal encoders |
| Macro / Executor Keys |
12 |
| Internal Display |
12.1″ WXGA capacitive multi-touch, 800 nit |
| External Display |
Up to 4K UHD via DisplayPort |
| Timecode |
Dedicated SMPTE LTC input |
| Visualisation |
Integrated Capture Engine |
| Multi-console |
TitanNet multi-console support |
| Remote Control |
Titan Remote for iOS & Android |
| Expansion |
D3 Wing, T3 Wing or Titan Mobile Wing |
| Dimensions |
423 × 468 × 202mm |
| Weight |
8.7kg |
What has improved over our Quartz?
The D3-110 is the modern replacement for our Quartz and represents a substantial upgrade to our compact lighting-control offering.
More output capacity — 24 universes vs 16. The Quartz supported 16 universes directly from the console, whereas the D3-110 provides 24 native universes, increasing capacity from 8,192 to 12,288 DMX channels. This gives considerably more headroom for modern fixtures, pixel products and larger lighting systems without requiring additional processing hardware
New-generation hardware. The D3 platform uses Avolites’ latest console architecture with greater processing capability, designed specifically for modern Titan shows and more demanding programming environments. Avolites describes the D3-110 as having increased processing power for larger shows and tighter production schedules.
Much improved control surface. The D3 introduces backlit low-profile programming keys, dedicated macro/executor keys and Avolites’ latest high-resolution metal attribute encoders. It brings the physical layout much closer to Avolites’ newer D7 and D9 consoles, making movement between consoles considerably more intuitive for operators.
Better screen and display connectivity. Both consoles use a 12.1″ internal display, but the D3 features an 800-nit capacitive multi-touch screen and supports an external display at up to 4K UHD. The Quartz’s external DVI-D output was limited to 1920 × 1200.
Improved networking. Quartz provided a single Gigabit EtherCON connection; the D3-110 provides two Gigabit EtherCON ports, giving greater flexibility when building Art-Net, sACN and TitanNet networks.
Dedicated professional timecode connectivity. The D3-110 includes a dedicated SMPTE LTC input on 3-pin XLR, making it better suited to programmed shows, awards, launches and productions synchronised to video or audio playback.
Modern expansion options. The console supports the new D3 Wing, adding another 20 playback faders, as well as the T3 Wing and Titan Mobile Wing.
