Blackmagic ATEM SDI Extreme Video Switcher & Preview Screens

This professional-grade live production switcher tailored for broadcasters and live event producers requiring extensive connectivity and advanced features. Equipped with eight 3G-SDI inputs and four 3G-SDI outputs, it facilitates seamless integration with multiple cameras and video sources. The switcher supports recording of up to nine separate H.264 video streams in real-time, capturing all eight clean feed inputs and the program video simultaneously. This capability is particularly advantageous for post-production editing and multi-camera workflows.

Specification:

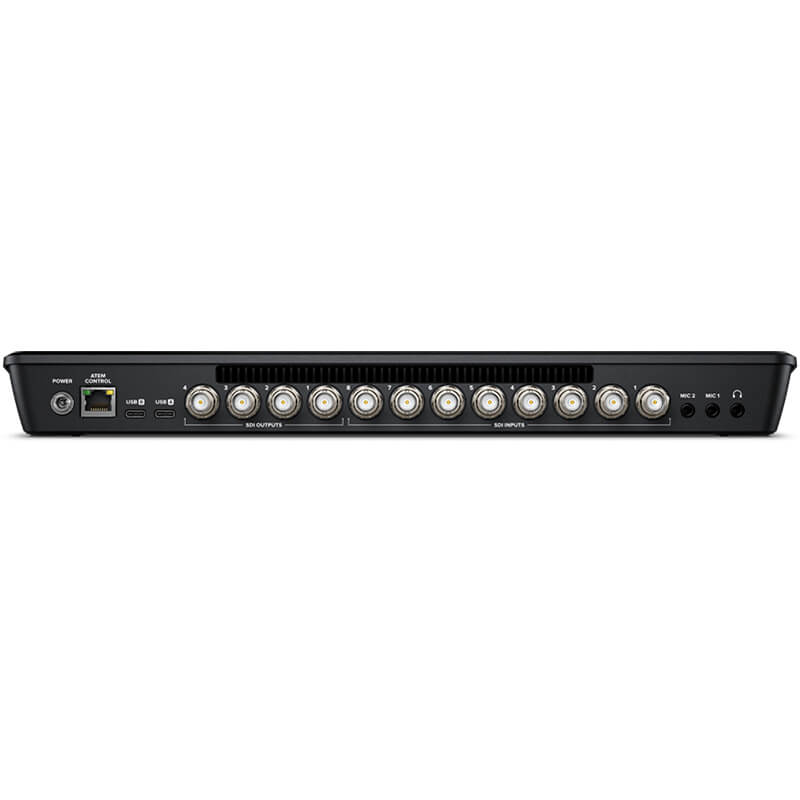

• Video Inputs: 8 x 3G-SDI, 10-bit HD switchable, each with standards conversion and re-sync.

• Video Outputs: 4 x 3G-SDI program outputs.

• Audio Inputs: 2 x 3.5mm stereo mini jacks for external audio sources.

• Audio Outputs: Embedded audio only; no separate audio outputs.

• Multiview Monitoring: Integrated multiview with customizable layouts, supporting up to 16 views.

• Chroma Keyers: 4 upstream chroma keyers for advanced keying and virtual set applications.

• Digital Video Effects (DVE): 6 picture-in-picture DVEs for dynamic compositions.

• Media Players: 2 media players with a 20-still capacity media pool for graphics and titles.

• Streaming Capability: Direct streaming via Ethernet using RTMP and SRT protocols for low-latency and secure streaming.

• Recording Capability: Simultaneous recording of 9 H.264 video streams, including all inputs and program output.

• Control Interface: 2 x USB Type-C 3.1 Gen 1 ports for external drive recording, webcam output, software control, and updates.

• Ethernet: Supports 10/100/1000 BaseT for software control, updates, and direct or network panel connection.

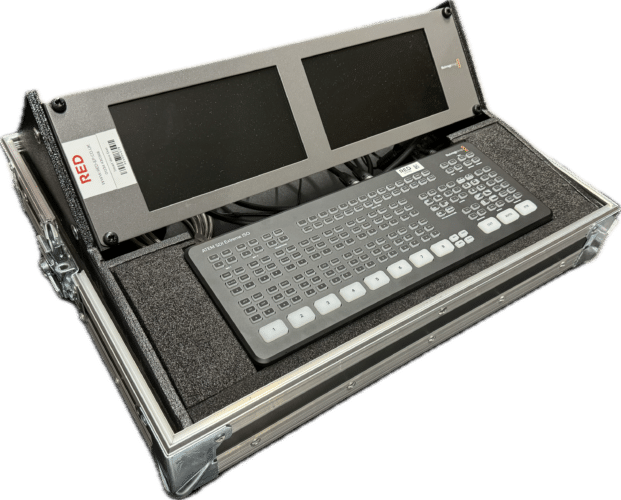

Supplied in a case with preview monitors, PSU, USB-C Cable & SDI Link Cables.
