Blackmagic Design Video Assist 4K
Model
Blackmagic Design Video Assist 4K

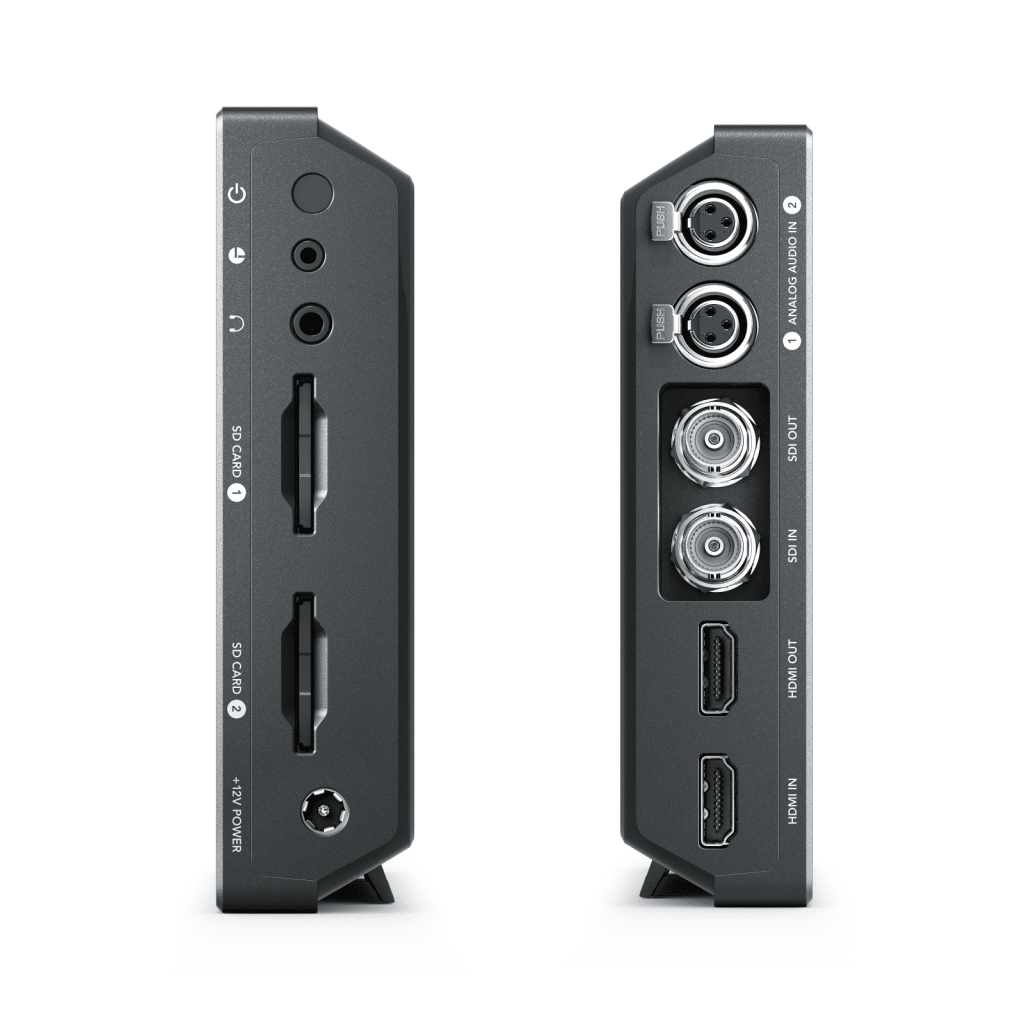

I/O
Inputs: 1x SDI 1x HDMI 2x Mini XLR
Outputs: 1x SDI 1x HDMI
Outputs: 1x SDI 1x HDMI
Media Storage
Dual SD Card Slots
Power
Dual Batteries
12V DC Power Input
12V DC Power Input
The Blackmagic Design Video Assist 4K is a professional 7-inch touchscreen monitor and recorder, designed to enhance DSLR, mirrorless, and professional video workflows. It supports 4K UHD recording in ProRes and DNxHDformats, featuring 6G-SDI and HDMI connectivity. With built-in scopes, focus peaking, and dual SD card slots, it is ideal for high-quality monitoring and recording.
Specifications:
- Screen: 7-inch LCD touchscreen (1920 x 1200 resolution)
- Video Inputs: 1 x 6G-SDI, 1 x HDMI 2.0
- Video Outputs: 1 x 6G-SDI, 1 x HDMI 2.0
- Recording Formats: ProRes (HQ, 422, LT, Proxy) and DNxHD/DNxHR
- Media Storage: Dual SD card slots with hot-swappable recording
- Supported Resolutions: Up to 2160p30 (UHD 4K)
- Audio Inputs: 2 x Mini XLR with phantom power, embedded SDI/HDMI audio
- Monitoring Tools: Waveform, vectorscope, histogram, focus peaking, zebra, false colour
- Power Options: Dual LP-E6 battery slots, DC power input (12V)
- Mounting: Mounting points on top and bottom
