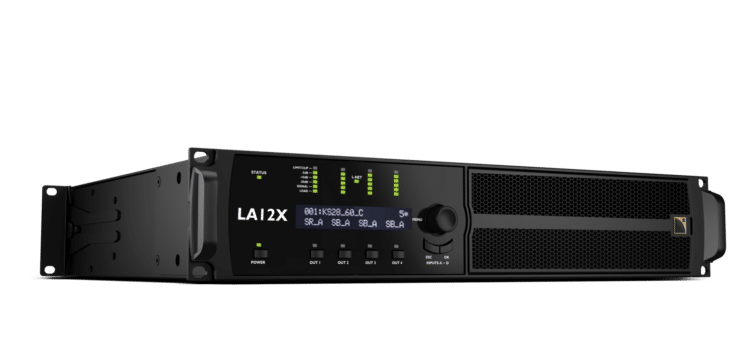

L-Acoustics LA12X Amplifier

The L-Acoustics LA12X is a high-power, four-channel amplified controller designed for professional audio applications. It delivers exceptional audio performance and reliability, making it ideal for large-scale sound reinforcement systems.

Supplied with 13A > Powercon & 16A > Powercon.

We also stock the LA4X Amplifier.

Designed for use with our L-Acoustic Kara, X12, X8 and SB18

• Amplification:
  • Class D amplifier delivering 4 x 3300 W at 2.7 ohms, 4 x 2600 W at 4 ohms, and 4 x 1400 W at 8 ohms.
  • Universal Switched Mode Power Supply (SMPS) with DSP-controlled Power Factor Correction (PFC) ensures consistent 12,000 W output across varying mains voltages.
• Inputs and Outputs:
  • Four analog inputs with passive link outputs.
  • Digital inputs supporting AES/EBU and AVB protocols.
  • Flexible 4 x 4 routing matrix for versatile signal management.
• Digital Signal Processing (DSP):
  • Dual SHARC 32-bit processors operating at 96 kHz sampling rate.
  • Per output channel: 8 IIR and 4 FIR linear phase EQ filters, array morphing, air absorption compensation, and L-DRIVE advanced system protection.
  • Output delay adjustable up to 1000 ms.
• Connectivity:
  • Ethernet ports for AVB audio streaming and remote control.
  • Analog and digital (AES/EBU) audio inputs with link outputs.
  • SpeakON and CA-COM speaker connectors.
