Lightware HD DVI over CAT7 Extender Kit
Model
Lightware DVI-HDCP-TPS
RX95 & TX95
RX95 & TX95
Weight

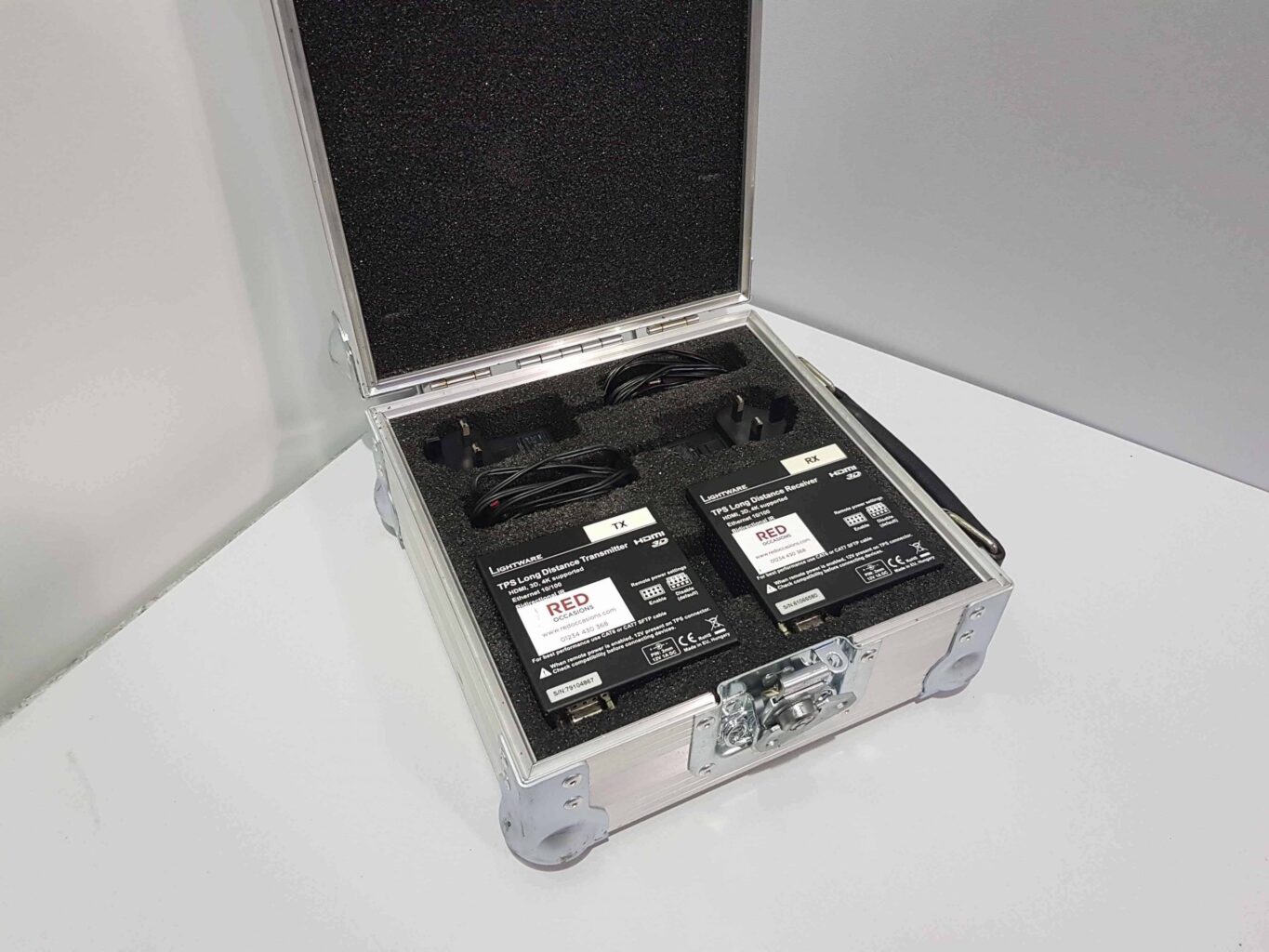

8KG - Flightcased Kit

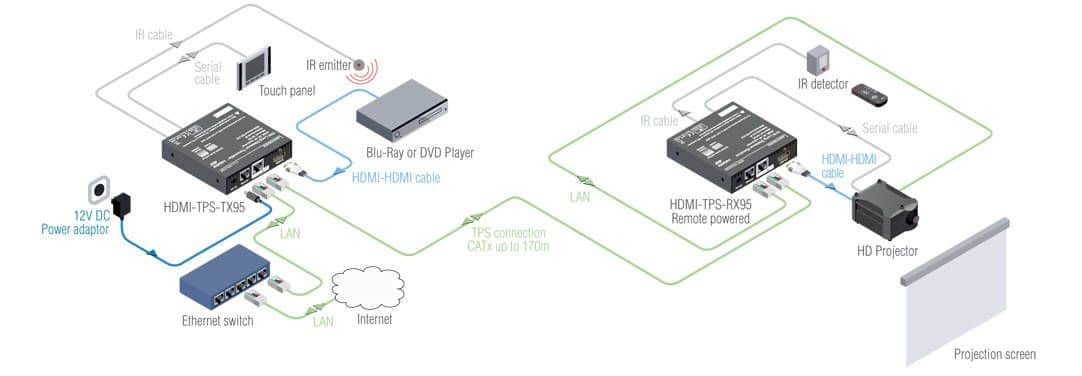

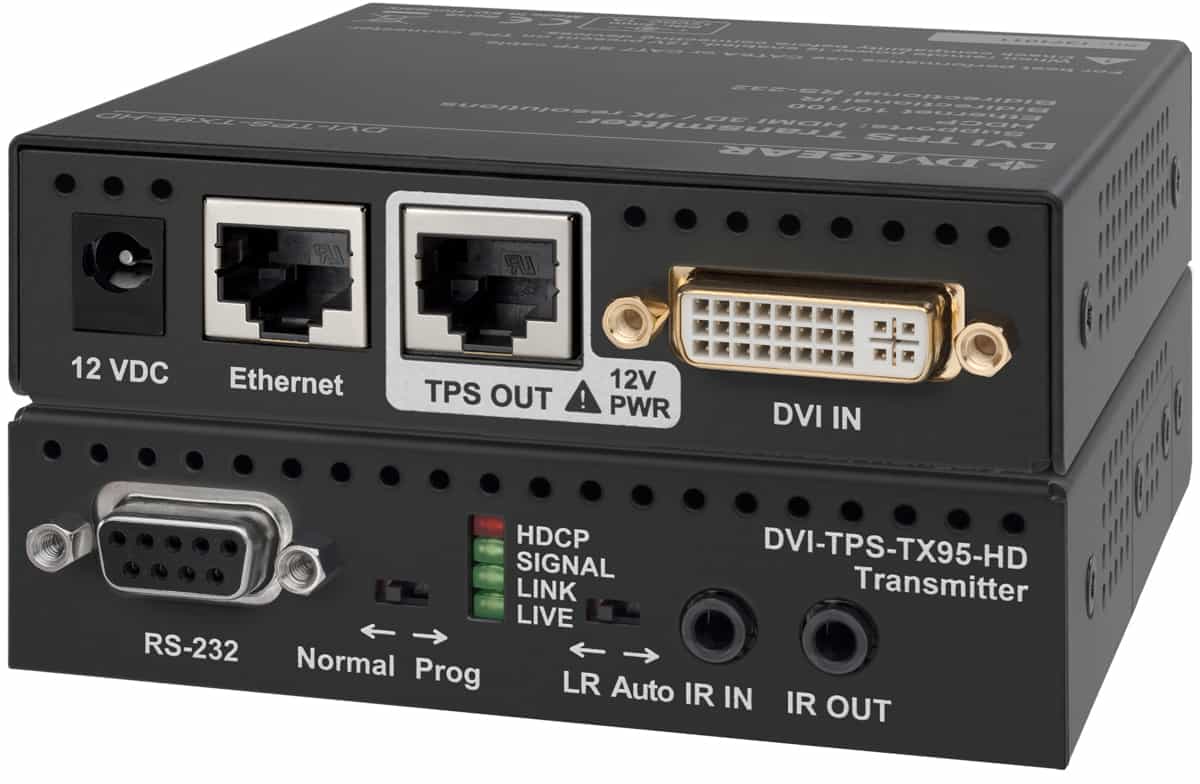

The DVI-HDCP-TPS-TX95 and DVI-HDCP-TPS-RX95 from Lightware are designed to send uncompressed Full-HD video over long distances via a single CAT7 Cable.
We can also supply CAT7 in the following lengths (price on application):-
- 20M
- 75M
Specification
- Single-Link DVI and HDMI extension over a CAT7 cable
- Bi-directional RS-232 pass-through
- Bi-directional IR pass-through
- Supports HDMI 1.4 resolutions
- Remote powered through CATX cable
- Compatible with 120Hz 3D video signals
- Uncompressed video/audio up to 10.2 Gbps
- Live, Link detection, Video and HDCP detection LEDs
- Supports all DVI resolutions up to 1080p or 1920×1200
- 10/100 Ethernet extension
- Low power mode in Auto operation mode
- Locking DC connector
- 3.4 Gbps per color
