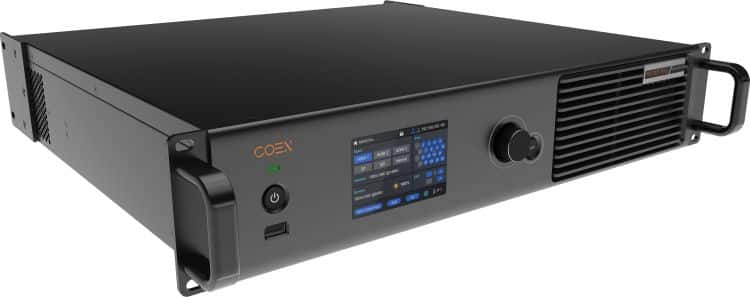

NovaStar MX40 Pro LED Controller (4K) – Single

The MX40 Pro is an all-in-one LED display controller that integrates video processing and control in a high-performance solution for the most demanding live and on-camera applications.

Its powerful VMP display control software brings design, management and monitoring into one intuitive platform. Pair with Absen Polaris 2.5mm to achieve a fast, low latency system offering a wide colour gamut, high bit depths, precise colour adjustment, adaptable frame rates and realistic immersion ideal for virtual production and broadcast environments, as well as offering 12G SDI and Fiber long-distance transmission capabilities essential for the world of events and touring.

This next generation processors reduces installation time, increases performance, output and reliability. See the download spec sheet for more information.

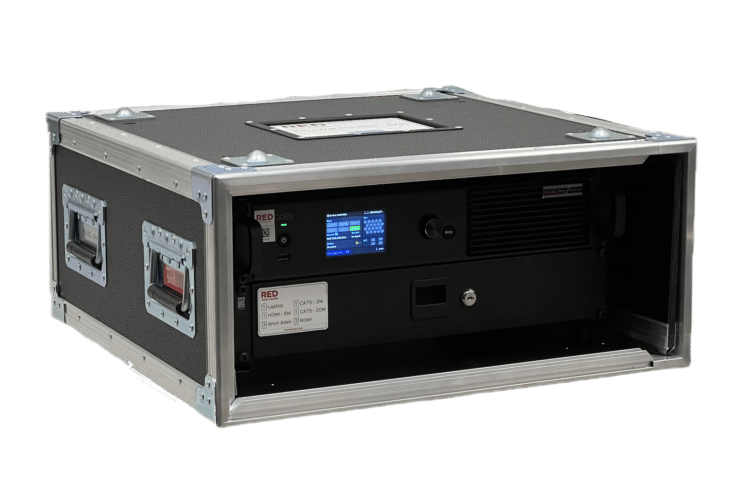

Supplied in racked flight case, with a drawer of useful accessories including a laptop controller.

Works with our Absen Polaris 2.5mm LED Video Wall.

The NovaStar MX20 and MX40 Pro are both all-in-one LED display controllers from NovaStar’s COEX series, however, they differ in terms of input/output capabilities, loading capacity, and advanced features.

Input/Output Capabilities:

• MX20:

  • Inputs: 2× HDMI 1.3, 1× 3G-SDI
  • Outputs: 6× Gigabit Ethernet ports, 2× 10G optical ports
  • Loading Capacity: Up to 3.9 million pixels

• MX40 Pro:

  • Inputs: 3× HDMI 2.0, 1× DP 1.2, 1× 12G-SDI

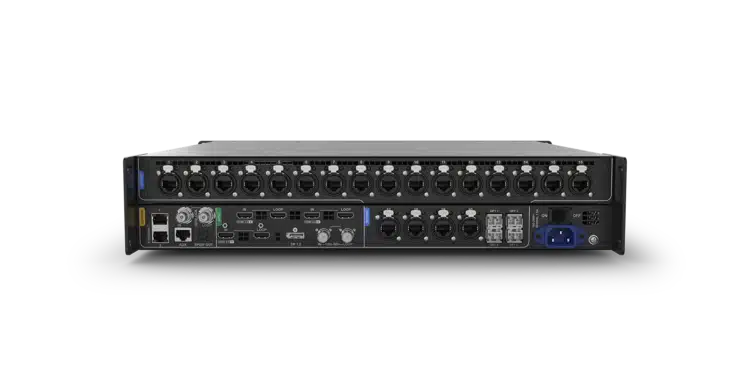

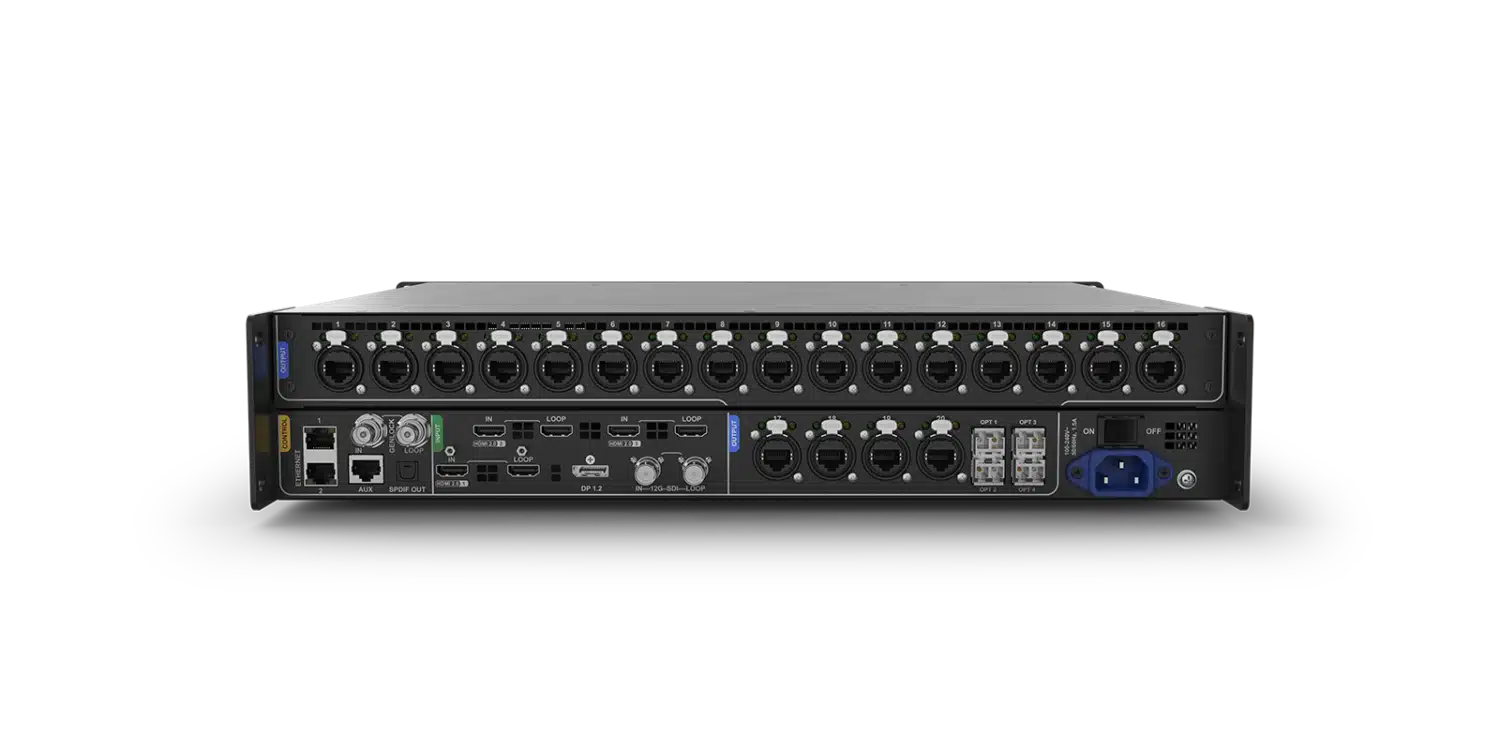

  • Outputs: 20× Gigabit Ethernet ports, 4× 10G optical ports
  • Loading Capacity: Up to 9 million pixels

Advanced Features:

• MX20:

  • Supports up to 3 layers with adjustable priority
  • Image scaling with custom, pixel-to-pixel, snap-to-canvas, and fill-screen modes
  • 14-channel color correction
  • Frame Rate Adaptive function
  • Full Grayscale Calibration

• MX40 Pro:

  • Supports up to 4 independent 4K layers with adjustable priority
  • Advanced image scaling capabilities
  • Dynamic Booster for enhanced contrast and detail
  • 3D LUT support for precise color management
  • HDR10 and HLG support
  • Low latency and additional latency options
  • 3D functionality
  • Frame Rate Adaptive function
  • Full Grayscale Calibration

In summary, while both controllers offer robust features for LED display management, the MX40 Pro provides enhanced input options, greater loading capacity, and more advanced processing capabilities compared to the MX20.
