Sennheiser 4 Way G4 Radio Rack

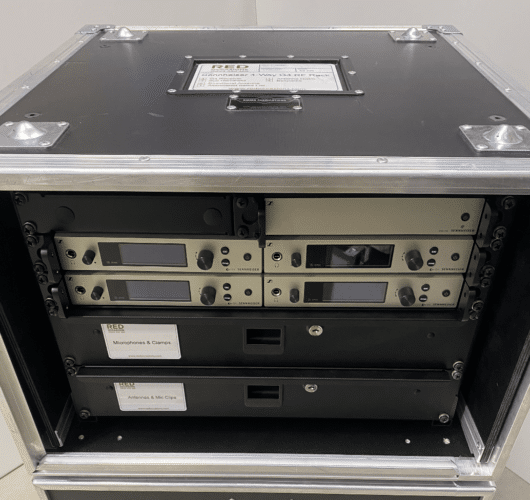

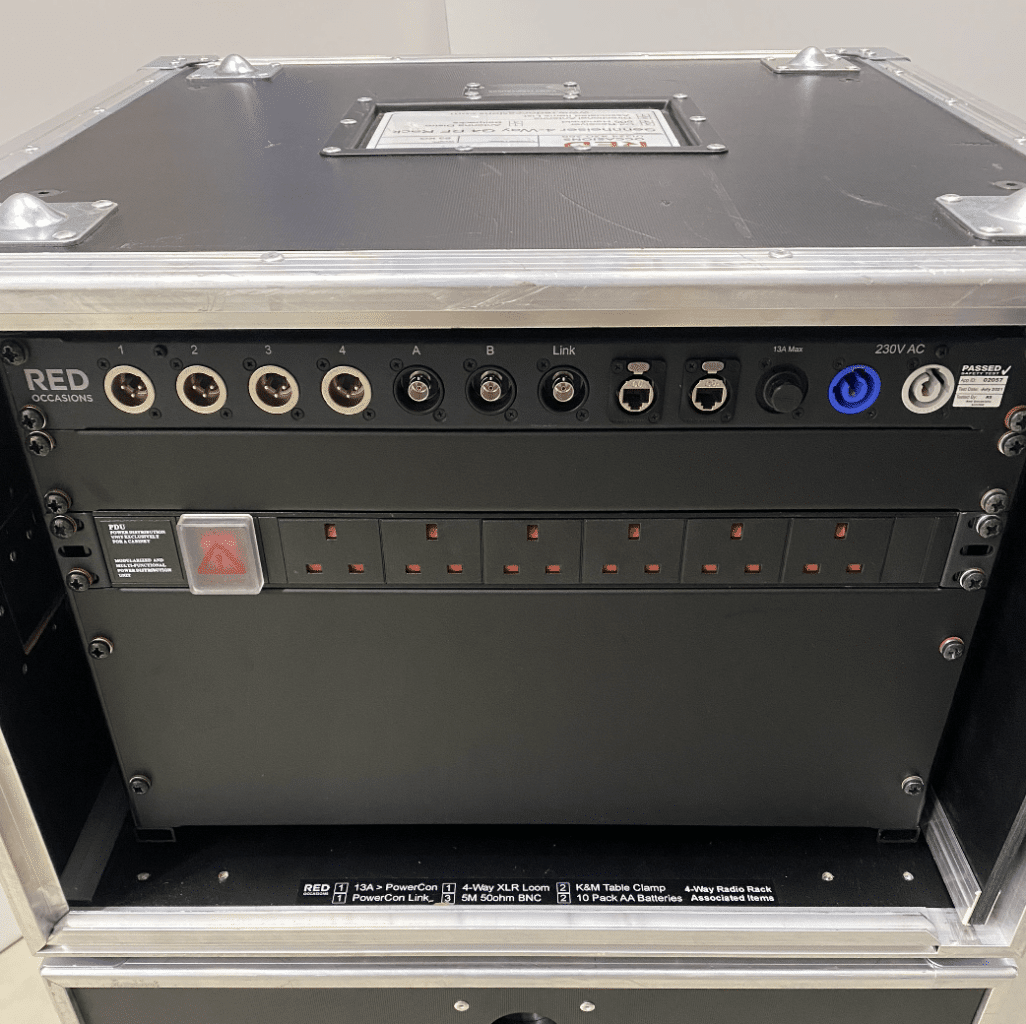

Our custom built Sennheiser EW300 G4 racks comprise of 4 EW300 receivers and an ASA1 Antenna distributer. Complete with internal power distribution for quick set up. They are conveniently built into stackable flight cases and can be supplied with wheel boards.

Perfect for medium sized corporate events, giving presenters a choice of lapel or handheld microphone.

Headset microphones can also be supplied on request.

Additional radio channels can be added with additional 4 way racks or our Sennheiser EW300 G4 Single Kits.

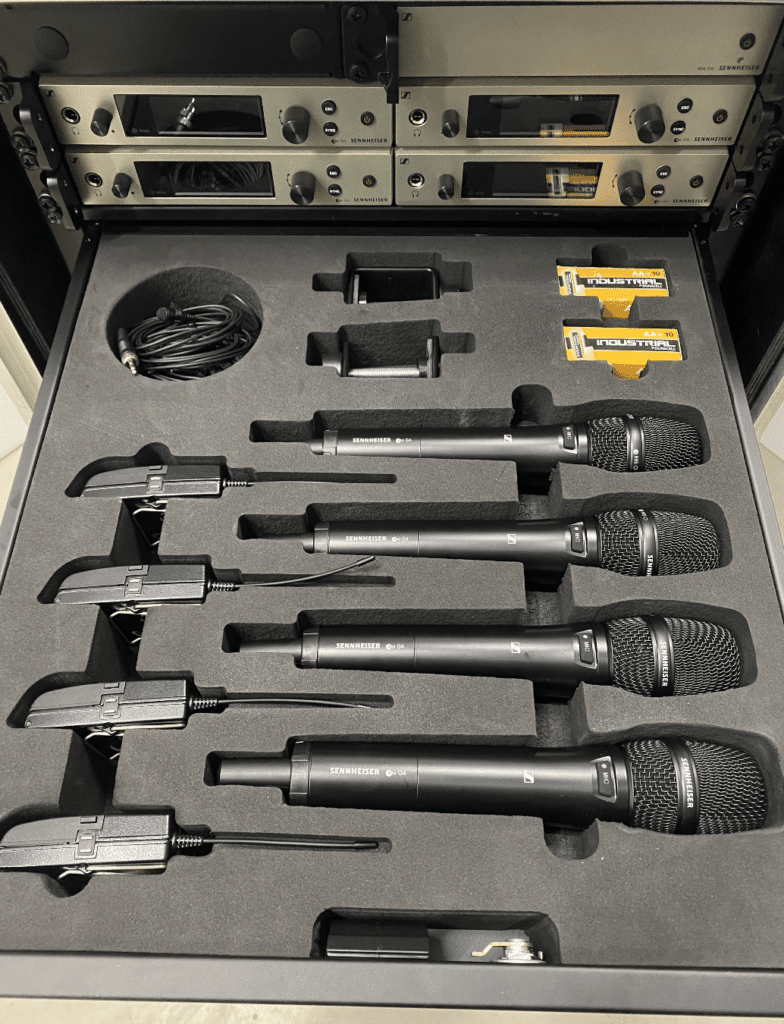

Rack Contents:

• 4 x Sennheiser EW300 G4 Reciever
• 1 x Sennheiser ASA Antenna Splitter
• 4 x Sennheiser SK300 with lapel microphone
• 4 x Sennheiser E865 Handheld microphone with clip

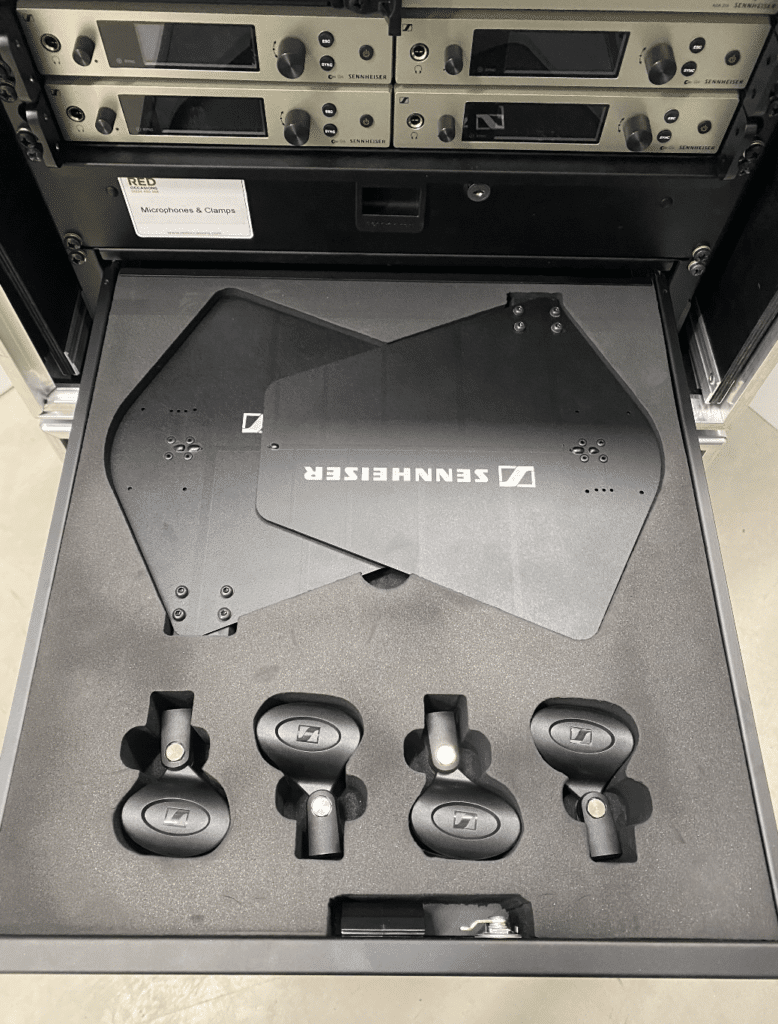

• 2 x Sennheiser A 2003 UHF Passive Wideband Directional Antenna with clamp and 5M BNC
• 1 x 4 way 3M XLR loom

Specification

EM 300-500 G4 Receiver

• Type: True diversity UHF receiver
• Frequency Range: Up to 1,680 selectable frequencies in 88 MHz bandwidth
• Audio Output: XLR (balanced) & ¼” jack (unbalanced)
• Display: OLED display with enhanced readability
• Power Supply: 12V DC
• Additional Features: Enhanced control via WSM software, increased transmission reliability

SK 300 G4 Belt Pack Transmitter

• Type: Bodypack wireless transmitter
• RF Output Power: Switchable (10mW, 30mW, 50mW)
• Microphone Compatibility: Lavalier (Supplied) & headset microphones (3.5mm locking connector)
• Battery Life: Up to 8 hours (2x AA batteries)
• Syncing: Infrared synchronisation with receiver

SKM 100 G4 Handheld Transmitter

• Type: Handheld wireless microphone with interchangeable capsules
• RF Output Power: 30mW
• Capsule Options: Compatible with Sennheiser e835, e845, e865, e935, e945 capsules. (865 Supplied)
• Battery Life: Up to 8 hours (2x AA batteries)
• Syncing: Infrared synchronisation with receiver
