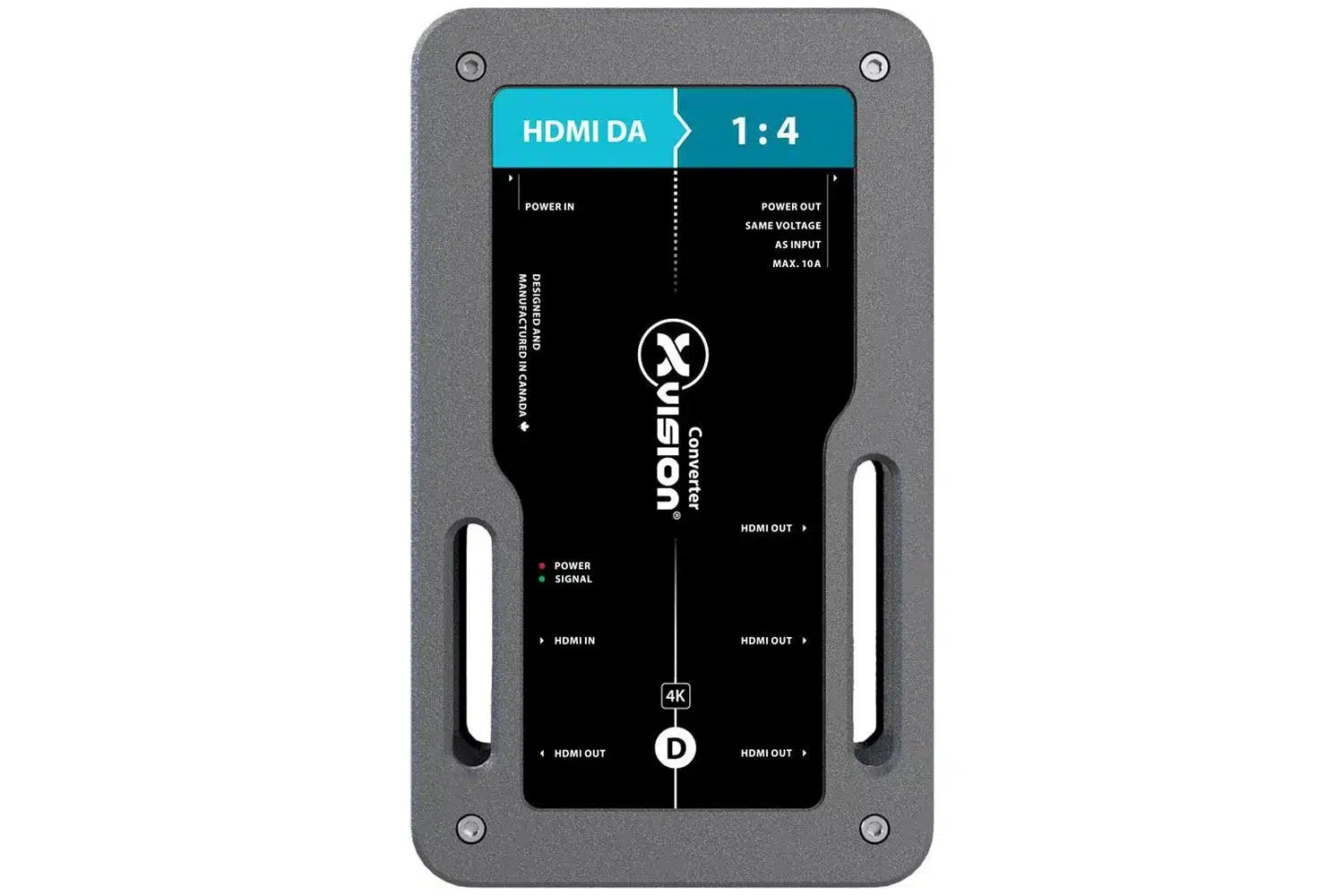

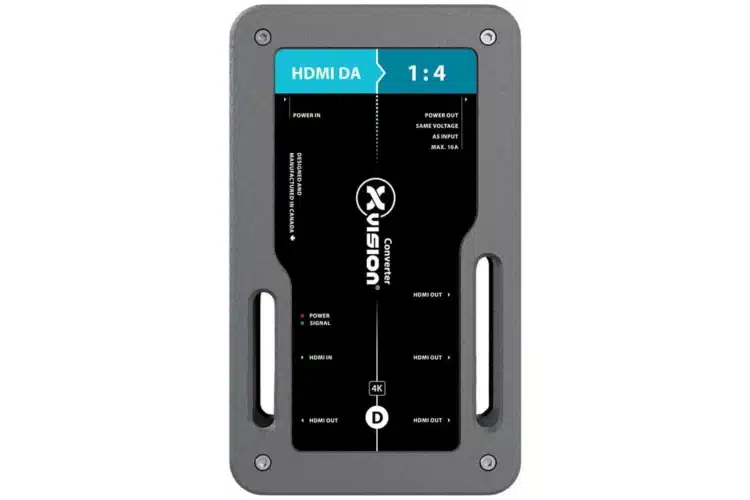

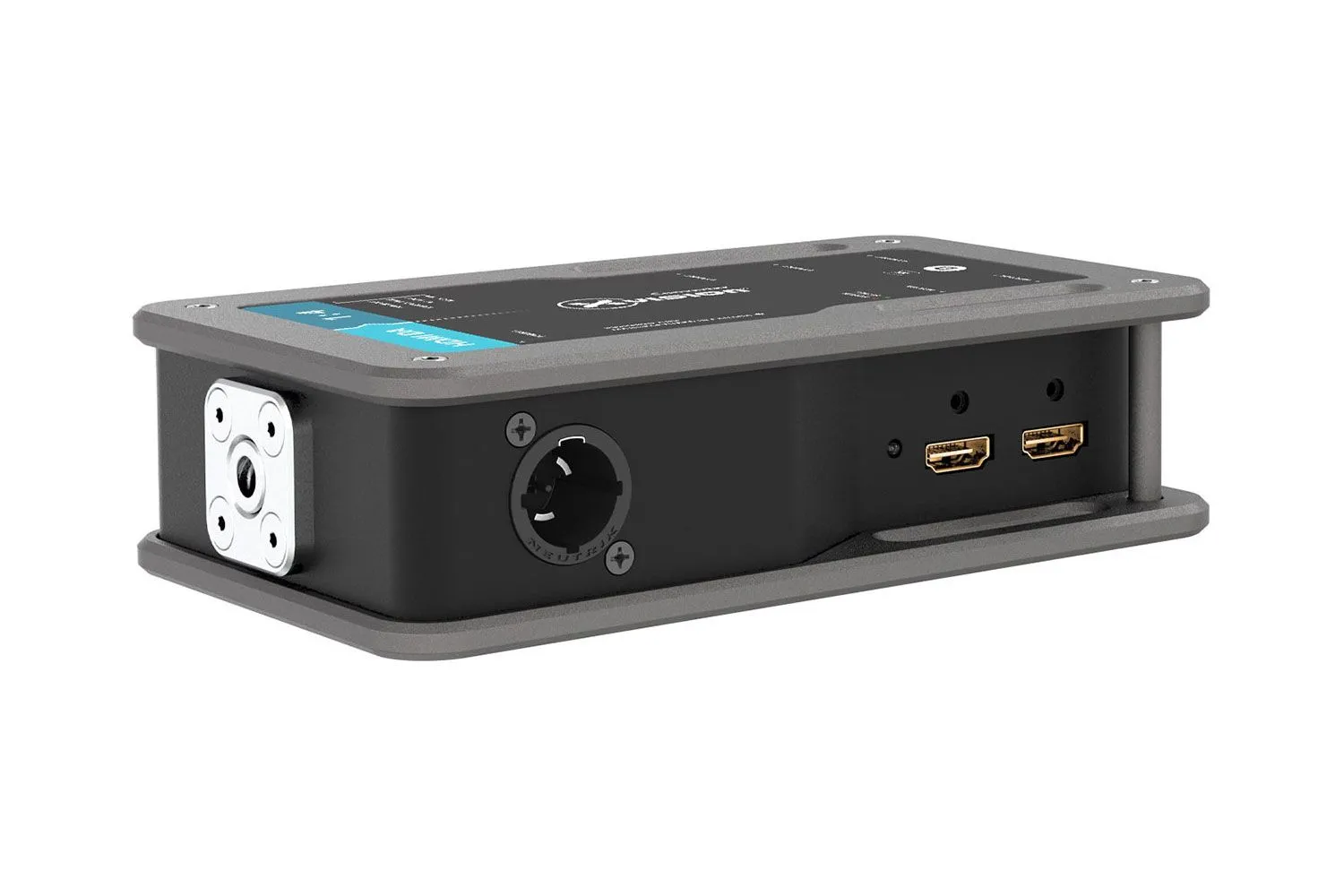

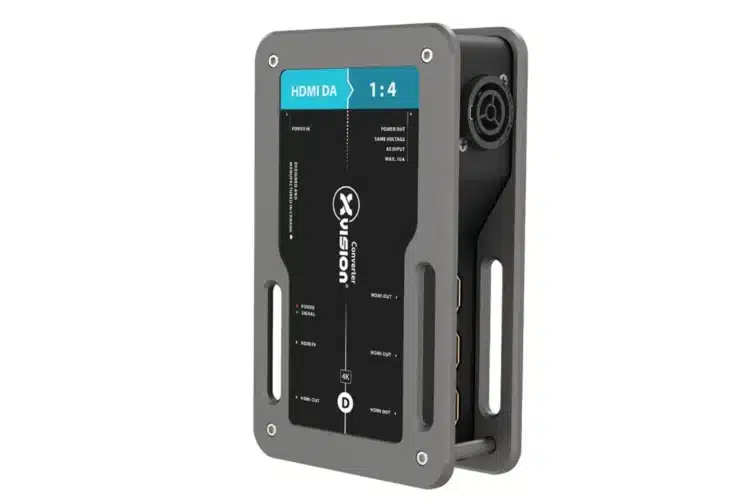

Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier
£50 /Week
The Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier is a professional-grade signal splitter that takes one HDMI 2.0 input and distributes it to up to four outputs while maintaining 4K UHD resolution at 60Hz. It ensures signal integrity, supports HDR, HDCP 2.2, and deep colour, and is designed for reliable use in live events, broadcasting, and AV installations. Unlike many other units on the market, this features an extremely rugged build for durability and stable performance. Supported by its integrated power supply with locking PowerCON Tru 1 connector, a magnetic stacking system and non-skid rubber pad for table top application.
It also allows multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and a belt adaptor.
Specification
| Connections | Video Input: 1 x HDMI 2.0 type A with locking system Video Output: 4 x HDMI 2.0 type A with locking system (Individual downscaling per port) |
|---|---|
| Supported Signals | Video Format Support: HDR 4K/2K @ 60 fps (4:2:0 10 bits) 4K/2K @ 60 fps (4:4:4 8 bits) HDCP Compliance: HDCP 2.2/1.4 Video Bandwidth: Single-link 600MHz (18 Gbps) Embedded Audio: DTS-HD Master Audio, Dolby True HD Dolby Digital, DTS, LPCM |
| Environmental Specifications | Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 °C |
| Power Requirements | Built-in power supply PowerCON True1 input & output Power Consumption: 15W Voltage Range: 100-240V, 50-60Hz Courtesy Outlet: Max 10A |
| Physical Specifications | Height: 50 mm Depth: 180 mm Width: 107 mm Weight: 1 kg |
