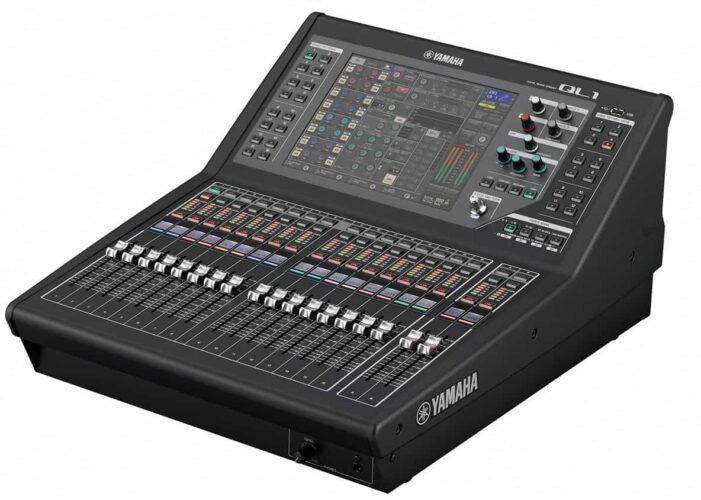

Yamaha QL1 Digital Mixing Desk
£300 /Week

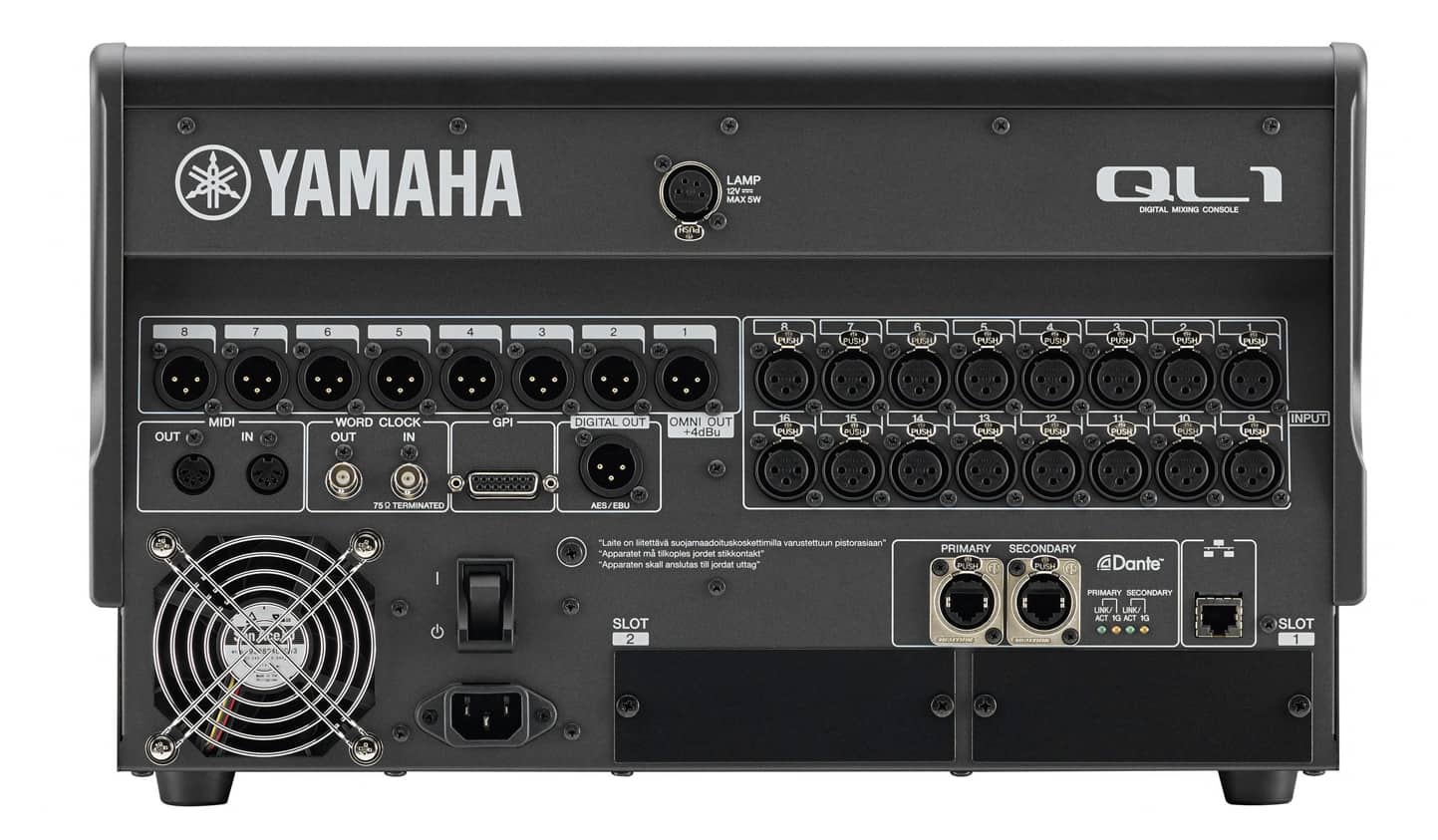

16x XLR Inputs
8x XLR Outputs
1x AES XLR Output
Patch Panel
2x Ethercon (Primary)
2x Ethercon (Control VLAN)
1x Powercon In (13A > Powercon Supplied)
The Yamaha QL1 Digital Mixing Console is packed full of features and ideal for small to medium scale live sound and corporate events.
The QL1 has built-in Dante networking that enables flexible system configuration when networking for larger events.
A feature that’s been built directly into the Yamaha QL1 is the renowned Dan Dugan automatic microphone mixing. This amazing feature enables the operator to concentrate on details other than fader operation and let the Dan Dugan Automatic Mixer look after the smooth gain control and reduce feedback and comb filter issues. Perfect for large panel sessions on corporate events.
The Yamaha QL1 can also be used with the StageMix iPad app to provide wireless control (wireless router supplied as standard) which is fantastic for monitor mixing and dialling in speaker delays.
The Yamaha QL Editor can be used to program your show in advance.
Supplied with flightcased, our QL series consoles come complete with Ethercon patch panel that lead to a dedicated network switch for the primary Dante network. All configured and ready for quick deployment. Also included is a pair of gooseneck lamps, a wireless router and 13A > Powercon Cable
The Yamaha QL Editor can be used to program your show in advance.
Specification
- Up to 32 mono + 8 stereo channels
- 16 Local Inputs
- 8 Local Outputs
- 16 Mix Buses
- 8 Matrix buses
- Built in Dante – Primary/Secondary 32 in/32 out
- AES/EBU Out
- Word Clock I/O
- MIDI I/O
- Up to 300 Scenes
- USB Memory Recording
- 100mm motorised faders
