OXO Pixyline 150 IP LED Batten (IP65)

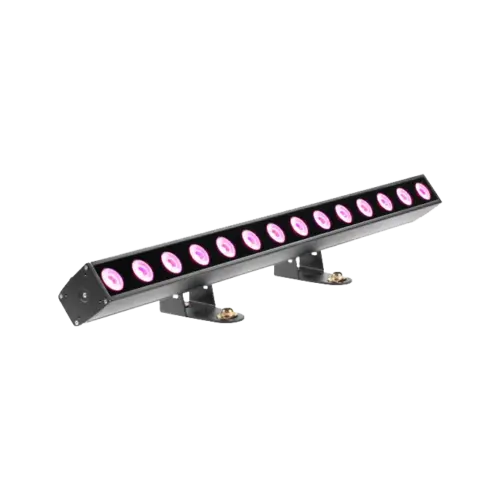

The OXO Pixyline 150 IP LED Batten is a versatile and robust lighting fixture designed for both indoor and outdoor applications, thanks to its IP65-rated protection. Equipped with fourteen 10-watt RGBW LEDs, it delivers vibrant and customisable lighting effects suitable for awards ceremonies, live music events and uplighting set or architecture.

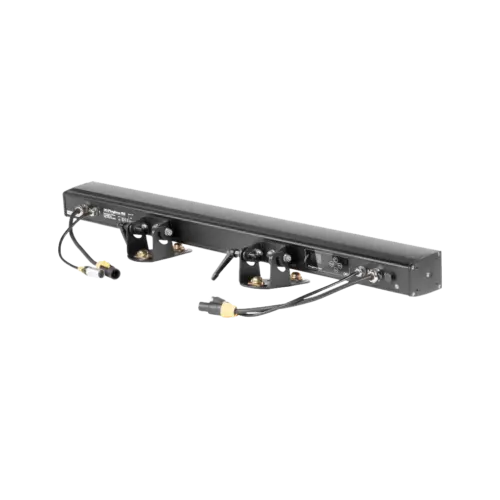

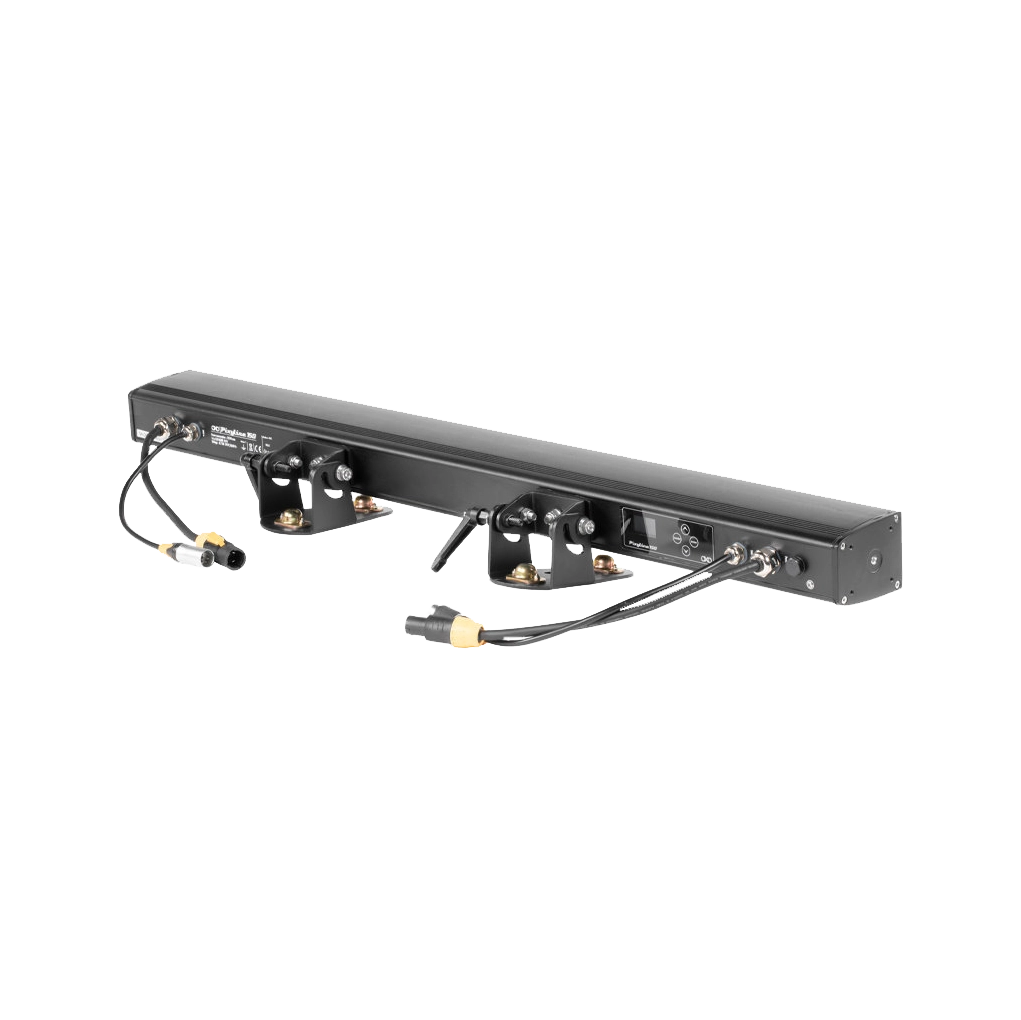

The fixture includes asymmetrical rotating feet with Omega brackets and quick-locks, facilitating both suspended and ground-stacked installations. For seamless integration, the Pixyline 150 features trailing input and output cables fitted with 5-pin DMX and True1 connectors, allowing easy daisy-chaining of multiple units without the need for extra cables.

These LED battens are particularly effective for illuminating custom set backdrops, providing rich colour washes and dynamic effects. They are available in sets of eight, supplied in a durable flight case for convenient transport and protection.

We also stock the smaller Pixyline 75 units.

Specification

• Light Source: 14 x 10W RGBW 4-in-1 LEDs (Red, Green, Blue, Warm White at 3000K)
• Beam Angle: 20° x 50° asymmetrical
• Control Modes: DMX with 5, 10, 56, or 62 channels; RDM; IR Remote
• Built-in Effects: Dynamic macros including smooth chaser, fire effect, and water effect
• Dimming: Electronic dimmer for smooth intensity control
• Strobe: Electronic strobe function
• Display: OLED display with 4 touch buttons for intuitive navigation
• Connectivity: 5-pin DMX input and output; PowerCON True1 input and output
• Power Supply: 100–240 VAC, 50-60 Hz
• Power Consumption: 140W
• Dimensions: L 980 x W 165 x H 163 mm
• Weight: 6.5 kg
