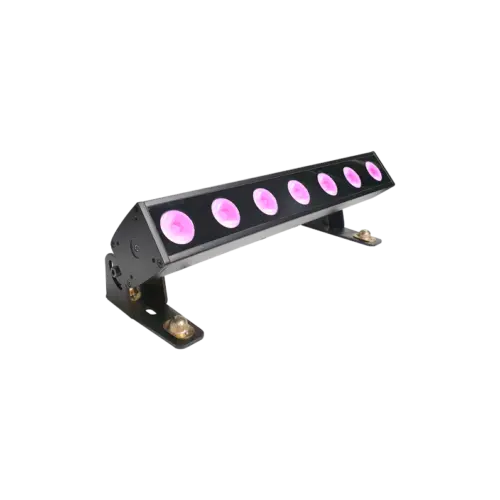

OXO Pixyline 75 IP LED Batten (IP65)

The OXO Pixyline 75 IP LED Batten is a compact and durable lighting fixture designed for versatile use in both indoor and outdoor settings, thanks to its IP65-rated protection. Equipped with seven 10-watt RGBW LEDs, it delivers vibrant and customisable lighting effects suitable for awards ceremonies, live music events, and architectural uplighting.

The fixture includes asymmetrical rotating feet with Omega brackets and quick-locks, facilitating both suspended and ground-stacked installations. For seamless integration, the Pixyline 75 features trailing input and output cables fitted with 5-pin DMX and PowerCON True1 connectors, allowing easy daisy-chaining of multiple units without the need for extra cables.

These LED battens are particularly effective for illuminating custom set backdrops, providing rich color washes and dynamic effects. They are available in sets of eight, supplied in durable flight cases for convenient transport and protection.

We also stock the larger Pixyline 150 units.

Specification

• Light Source: 7 x 10W RGBW 4-in-1 LEDs (Red, Green, Blue, Warm White at 3000K)
• Beam Angle: 20° x 50° asymmetrical
• Control Modes: DMX with 5, 10, 56, or 62 channels; RDM; IR Remote
• Built-in Effects: Dynamic macros including smooth chaser, fire effect, and water effect
• Dimming: Electronic dimmer for smooth intensity control
• Strobe: Electronic strobe function
• Display: OLED display with 4 touch buttons for intuitive navigation
• Connectivity: 5-pin DMX input and output; PowerCON True1 input and output
• Power Supply: 100–240 VAC, 50-60 Hz
• Power Consumption: 70W
• Dimensions: L 500 x W 165 x H 163 mm
• Weight: 3.5 kg
